Can I Use 4 AWG for 100 Amps? The Million-Dollar Question
2. Ampacity Charts to the Rescue!

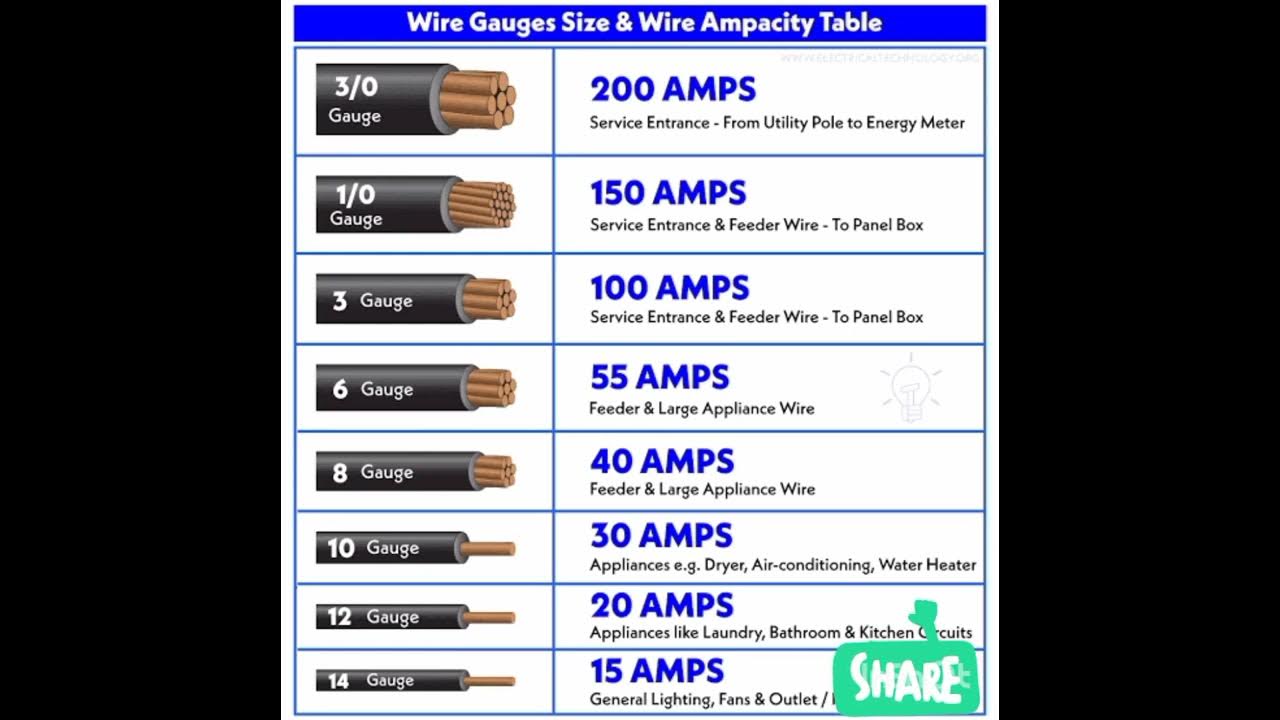

Alright, let's get down to the core question: "Can I use 4 AWG for 100 amps?" Generally speaking, according to the National Electrical Code (NEC), the answer is often yes, but with some important caveats. You always need to verify this based on your specific circumstances, local codes, and the type of wire you're using. Different insulation types have different temperature ratings, which affects how much current the wire can safely carry. It's best to double-check a current ampacity chart. These charts specify the maximum current a wire can carry safely, based on its gauge and insulation type.
A typical 4 AWG copper wire with THHN insulation (a common type) is usually rated for around 95 amps at 75C (167F). However, some charts may list it as suitable for 100 amps, especially under certain conditions. This is where knowing your insulation type becomes critical. For example, a 4 AWG aluminum wire will have a lower ampacity rating compared to copper.
Don't take shortcuts when selecting your wire. Its always better to err on the side of caution. If you're unsure, its often smarter to go with a slightly larger gauge than what you think you need. It gives you a bit of safety margin and reduces the risk of overheating. Plus, future-proofing your electrical system is a smart move, in case you decide to add more load later on.
Consider the installation method, too. If the wire is run in conduit with other wires, the heat buildup can be greater, requiring a larger gauge. Free-air installations, where the wire is exposed to more air, typically allow for a higher ampacity.
